Duplex & Multi-Stage Filter Systems

Key Features:

• Uninterrupted Filtration – Duplex systems allow seamless switching between filters.
• High Contaminant Retention – Multi-stage filtration ensures maximum impurity removal.
• Customizable Design – Available in different materials, sizes, and configurations.
• Durable & Corrosion-Resistant – Built with high-quality materials for longevity.
• Suitable for High-Pressure Applications – Designed to withstand up to 200 kg/cm².
• Flexible End Connections – Compatible with threaded, flanged, SMS union, and TC end connections.

Technical Specifications:

• Type of Strainer
  • Duplex Type
  • Simplex Type
  • Skid Mounted
  • Trolley Mounted
• Material of Construction (MOC):
  • CS, SS304, SS316L, PP, PTFE, PVDF, MS/PP, MS/PFA, etc.
• End Connection:
  • Threaded, Flanged, SMS Union, TC End.
• Switchover Valves:
  • Up to 50 NB: 3-way L-port ball valve.
  • Above 50 NB: Butterfly valve.
• Pressure Rating:
  • 0.5 to 200 kg/cm² & Customizable.
• Flow Capacity:
  • 200 LPH to 1000 m³/hr & Customizable.
• Filter Lengths:
  • 2.5" to 50" & Customizable.
• Shell Size:
  • 65 mm to 2000 mm OD & Customizable.

Products:

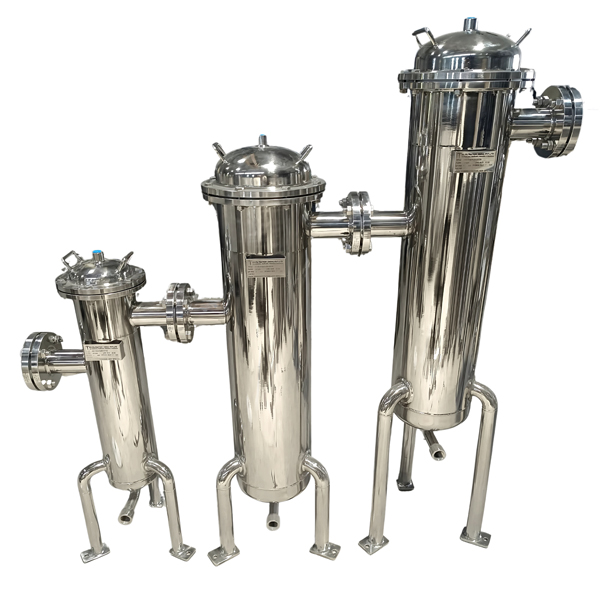

• Multi-Stage Filter Systems

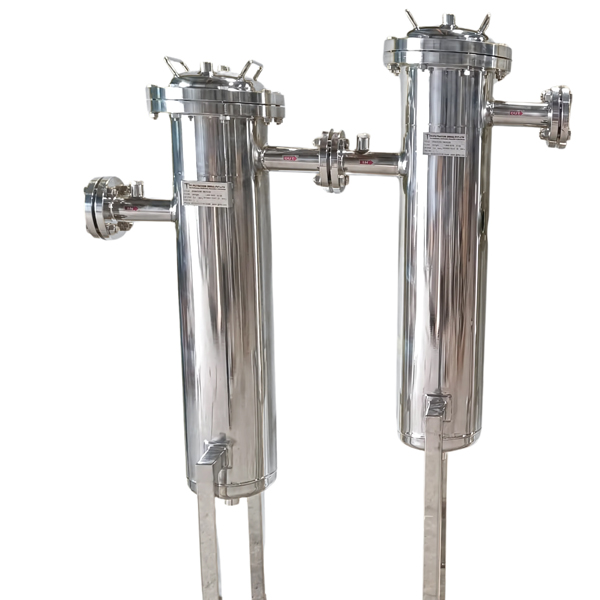

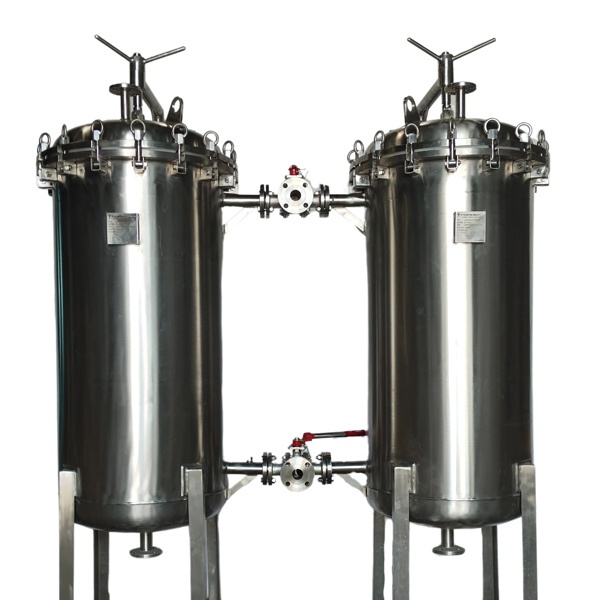

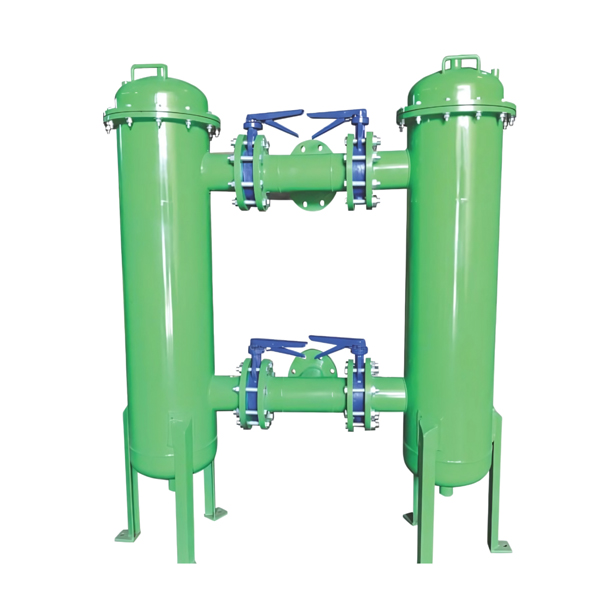

• Duplex Filter Systems

Applications & Industries:

• Pharma & Biotech: Sterile, contamination-free processing
• Oil & Gas: Lubricant, fuel & chemical filtration
• Water Treatment: Removes solids & impurities
• Chemical Industry: Protects equipment from contaminants
• Food & Beverage: Ensures purity & safety
• Power Plants: Filters steam & cooling water
