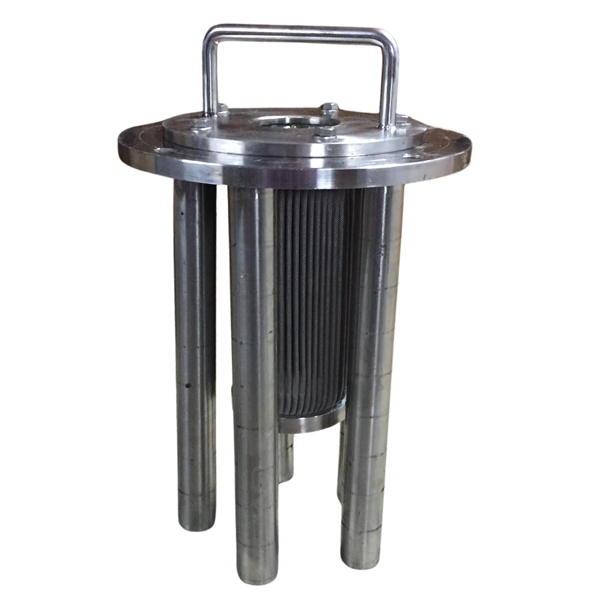

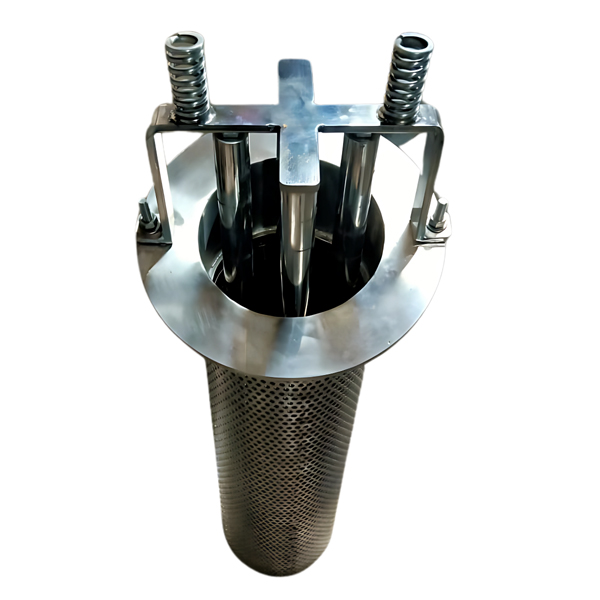

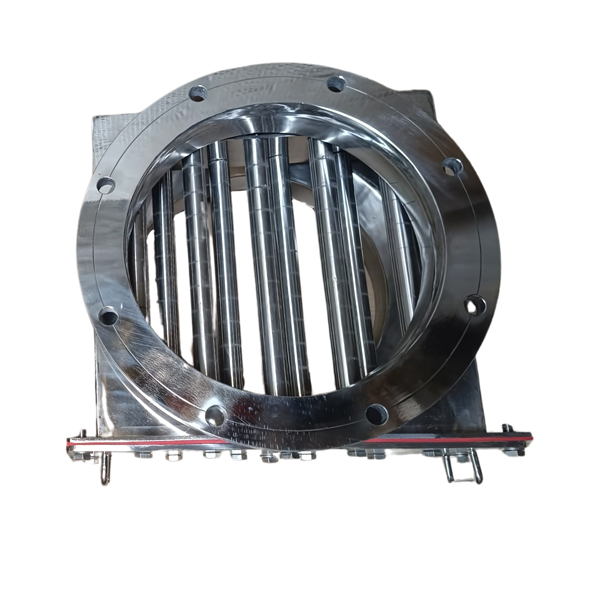

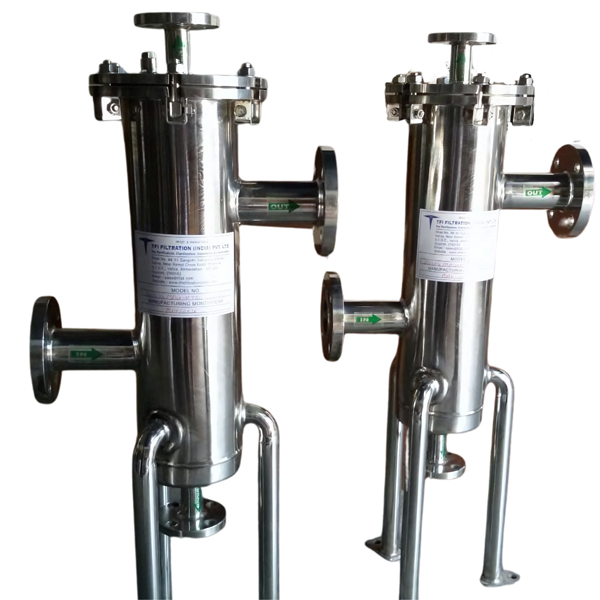

Magnetic Filter

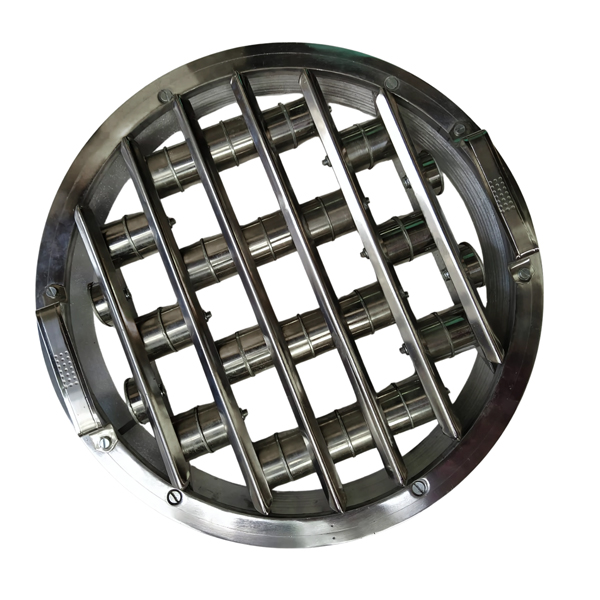

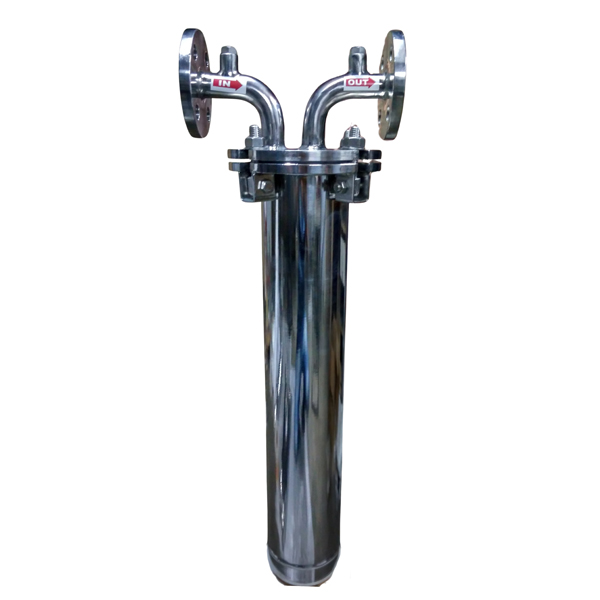

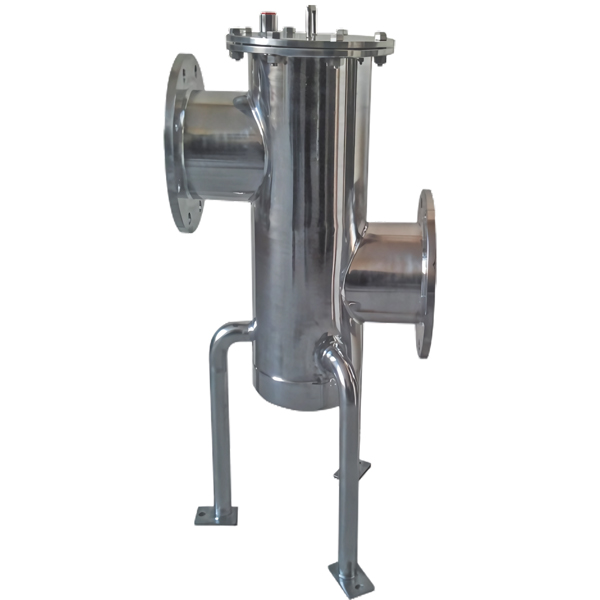

TFI® Magnetic Filters provides high-performance SS Magnetic Filters equipped with permanent high-intensity magnets, designed to trap fine ferrous particles from liquid and gas streams. Installed at strategic points in the fluid line, the liquid flows around a powerful magnetic field that captures iron particles in a magnetic trap. These particles can be manually removed by opening the top lid of the filter. This system enhances fluid purity, reduces wear on equipment, and supports uninterrupted operations with easy maintenance and minimal fluid loss.
Technical Specifications:
- MOC Body/Media: SS304, SS316L, Hastelloy
- Gauss Power: up to 9000 Gauss
- Pressure Rating: Minimum 2 kg/cm²
- Flow Rate: Customized
- Operating Temperature: Customized
- Outer Diameter: 25, 32, 40, 50 mm OD
- Length: 10”, 20”, 30”, 40” & Customized
- End Connections: TC, Flanged, Threaded, or Custom
- Cleaning: Manual
Applications:
- Compressed Air, Gases.
- Water filter, Process fluids, Chemical, Fuel, Oil, Solvents etc.
- Automotive Manufacturing Industries
- Magnetic Separation in food, Chemical, Pharmaceuticals, Sugar industries, Paper, Textile
TFI® also makes custom-designed Magnetic Filters to precisely fit customer’s applications. Information required is the following:
- Type of fluid
- Flow rate
- Size and concentration of contamination.
- Inlet and outlet flange connection
- The required volume of the fluid to be processed

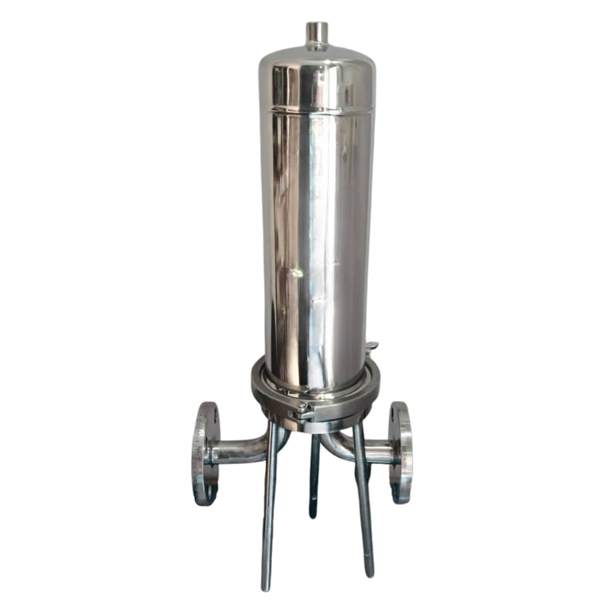

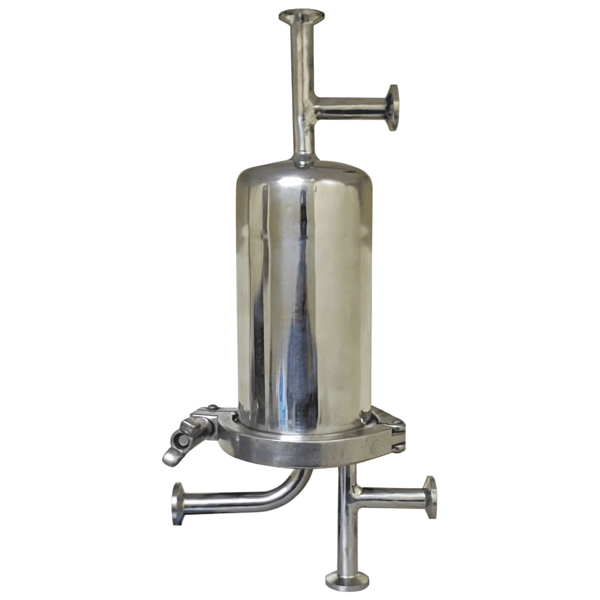

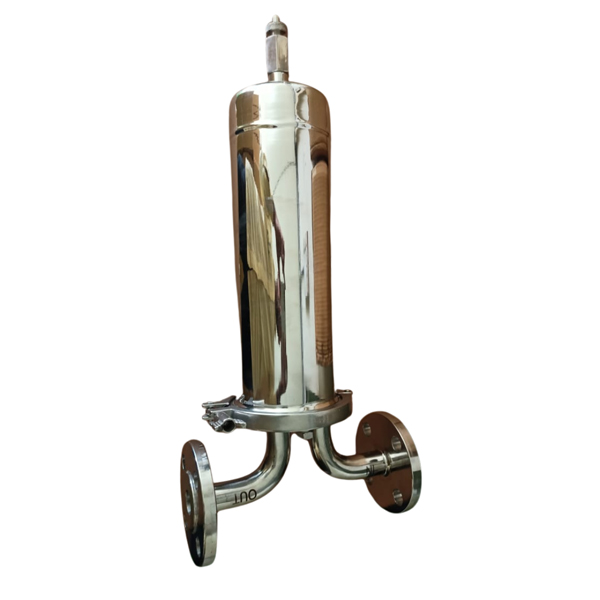

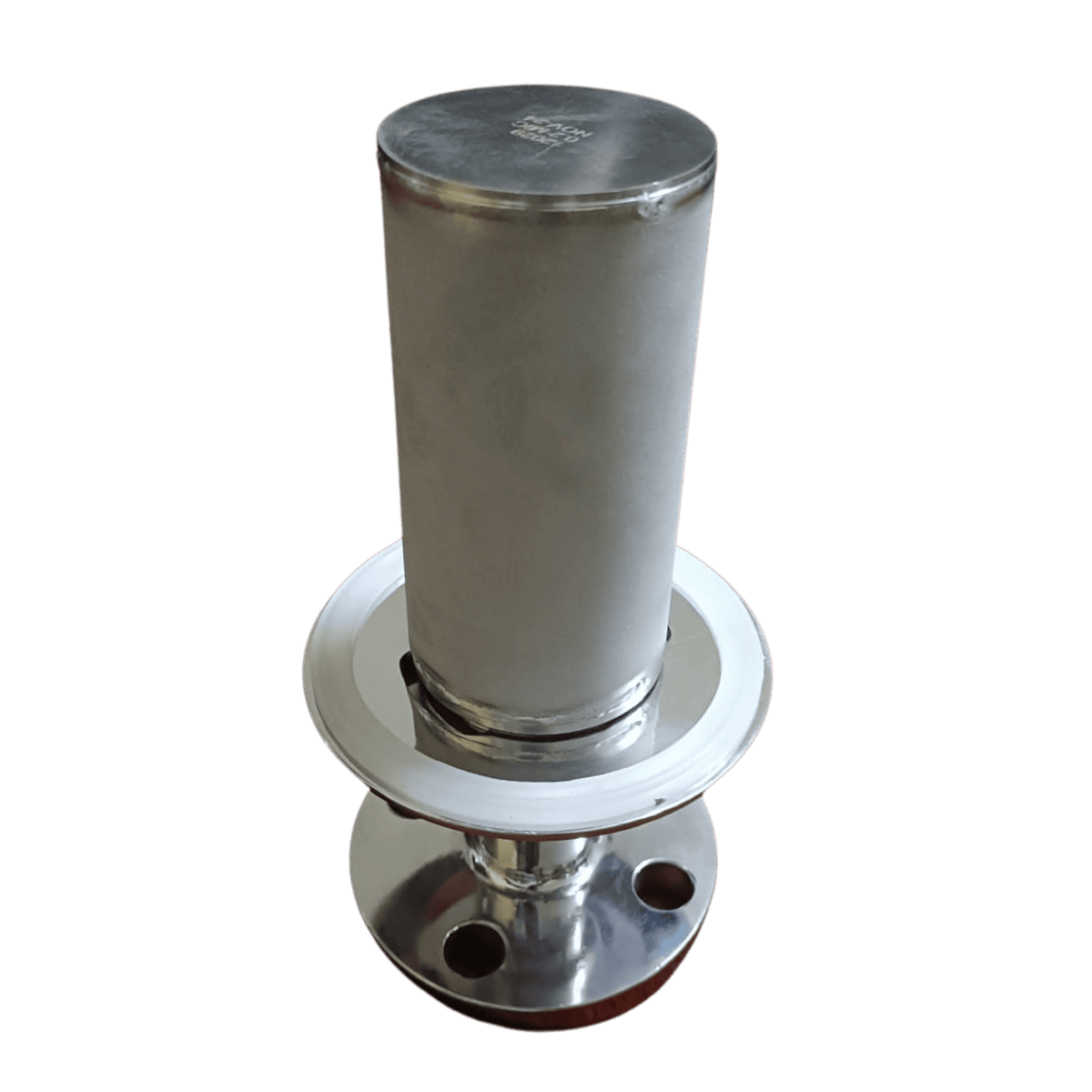

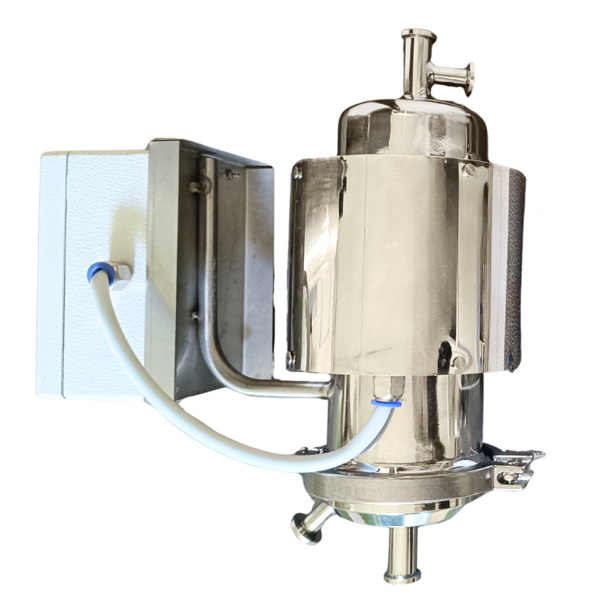

Air Vent

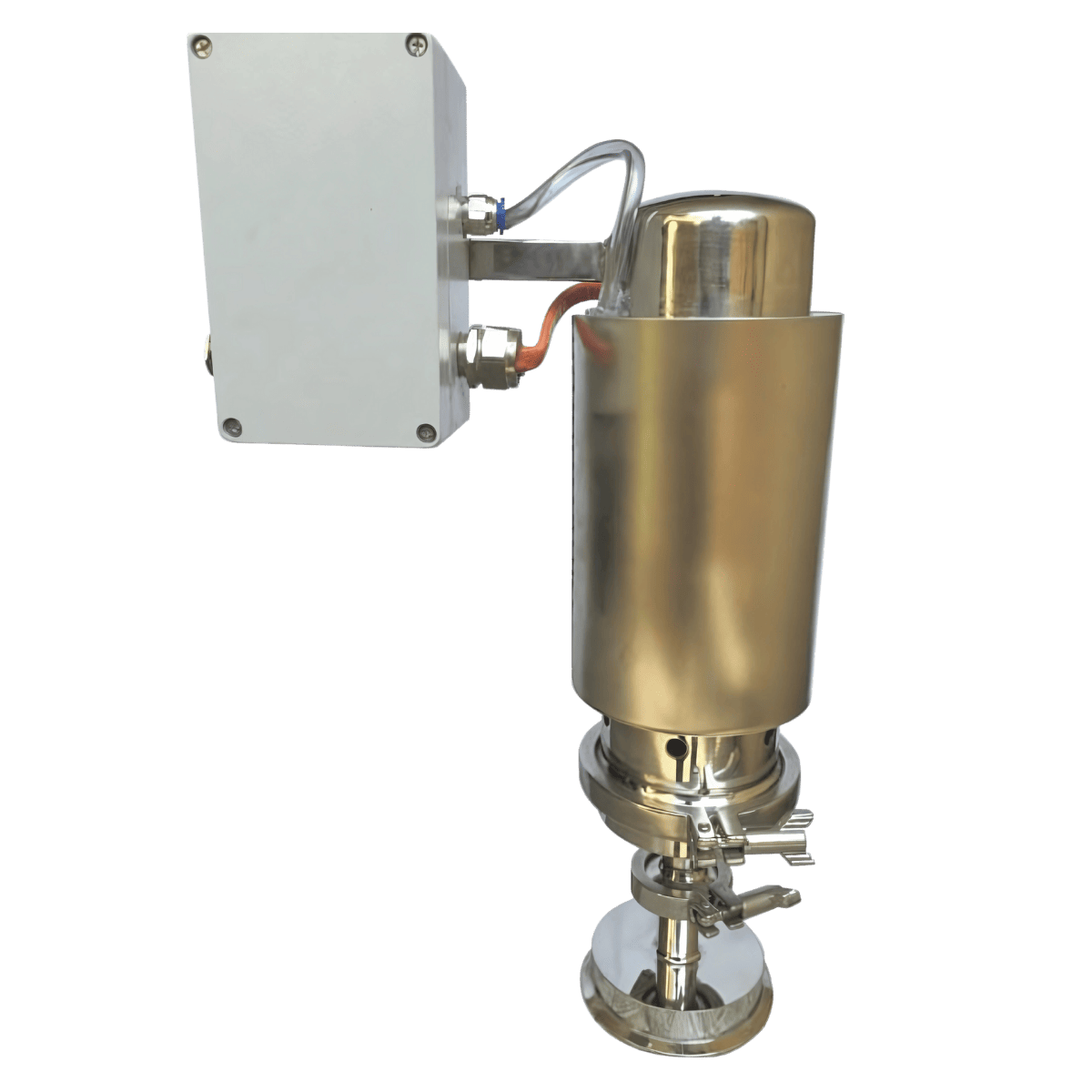

TFI® Stainless steel vent Filter is constructed for high purity applications to allow venting of large & small tanks. The housing is typically used in the food & Beverage industries. The housing is a clean & easy way to provide filtered air into tanks as well as allow gases to flow out. The design of the housing provides for a positive seal with the filters thereby preventing fluid by pass.
Technical Specifications:
- MOC: SS304/ SS316/ SS316L
- O-ring: Silicon, EPDM, Viton, PTFE
- Inlet/ Outlet: ½”, 1”, 1.5” BSP/ Triclover/ flange/ coupling
- Finish: Mirror polish
- Cartridge: PP, PTFE, SS304, SS316L

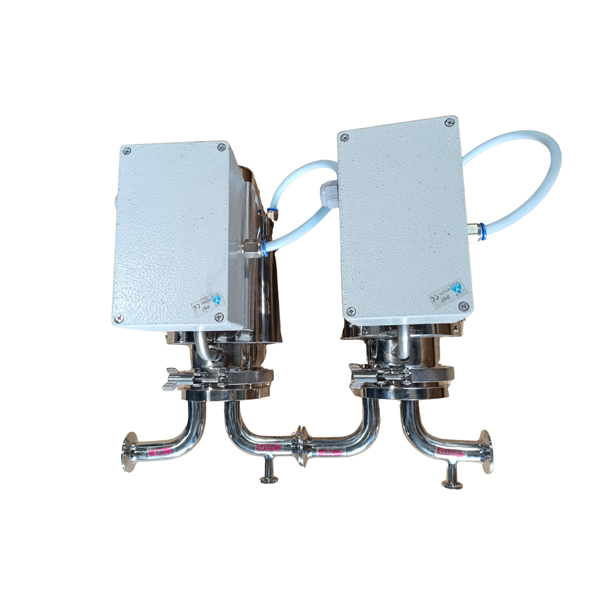

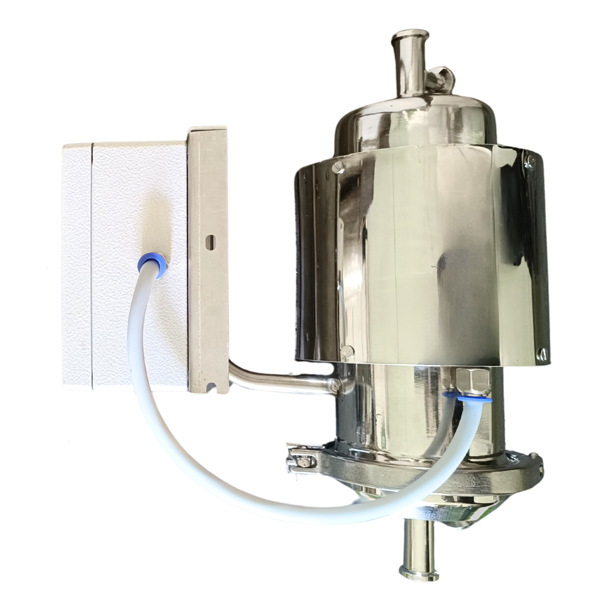

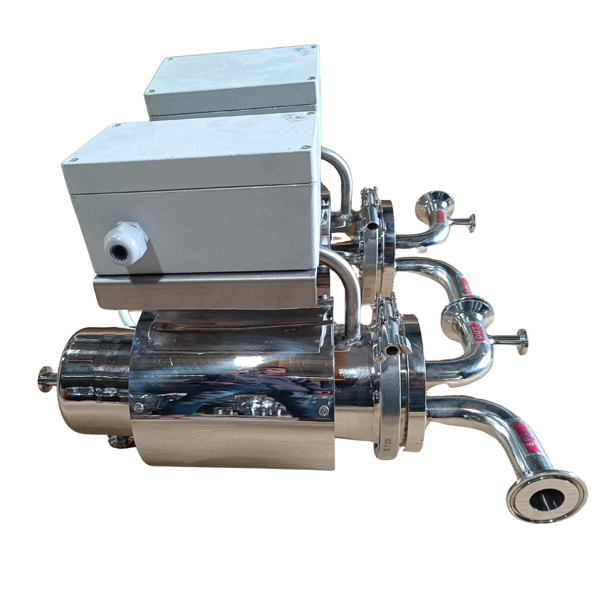

- Accessories for Vent Filter: Electric Heater, Heat Tracer, Temperature Controller, Jacket.
.png)
.png)
.png)

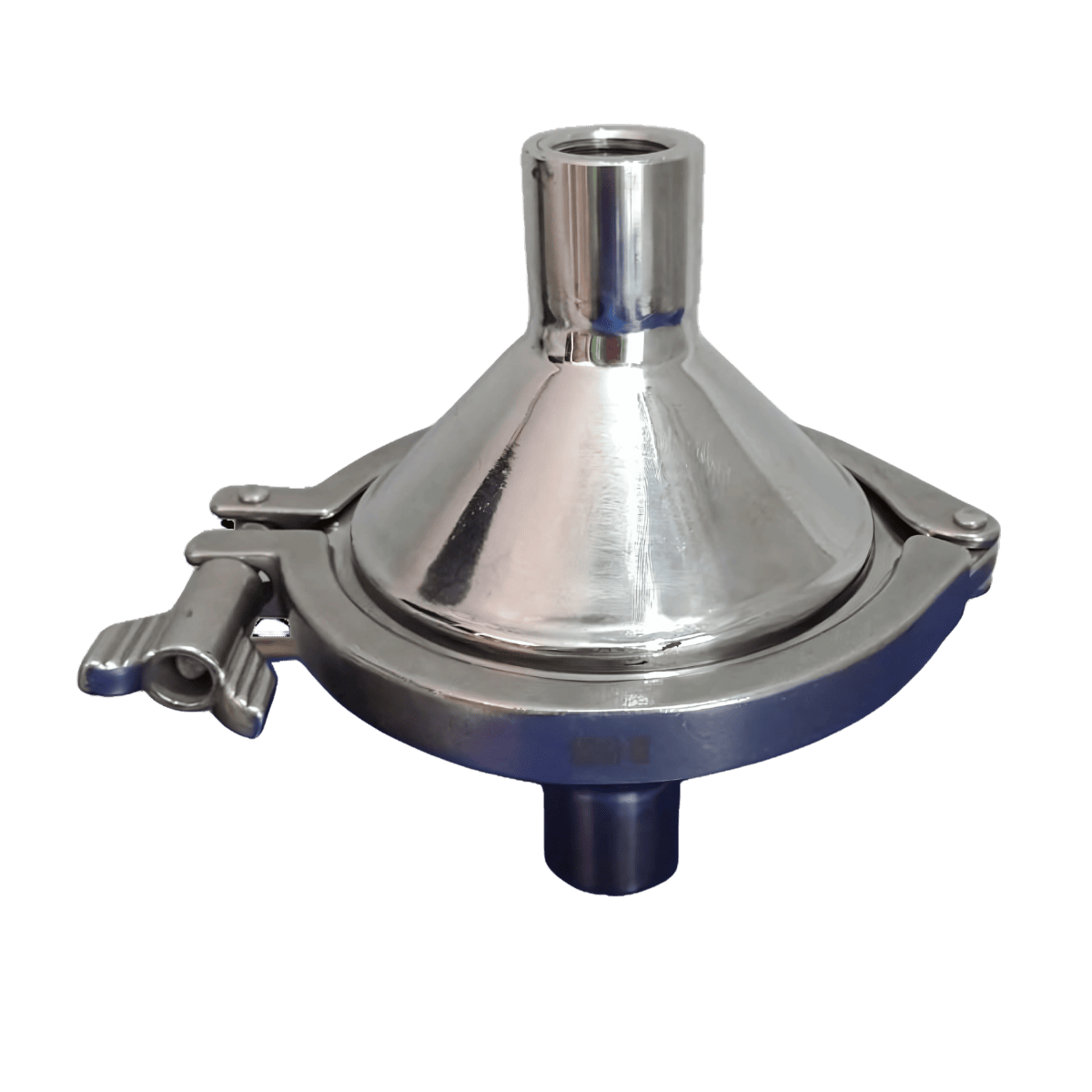

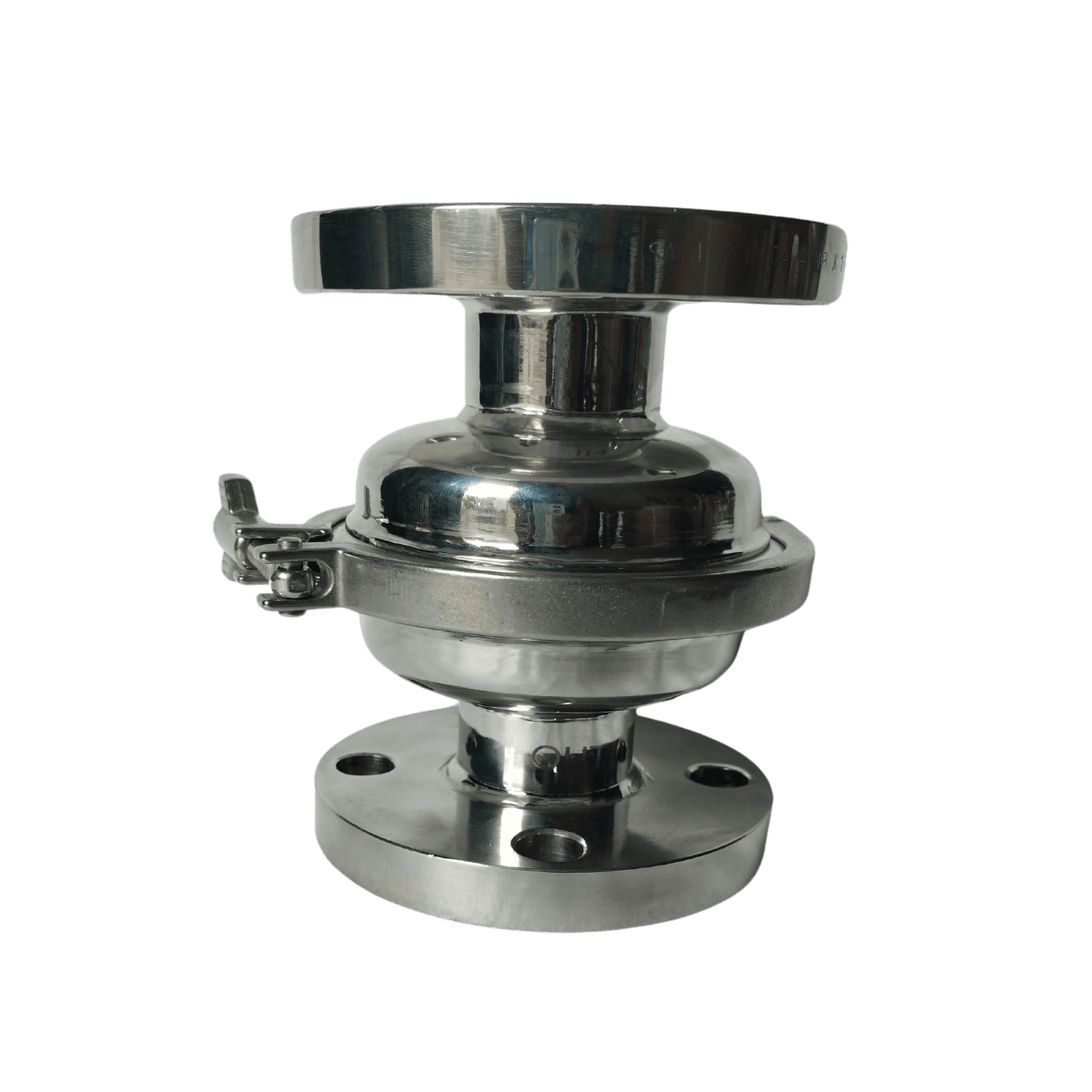

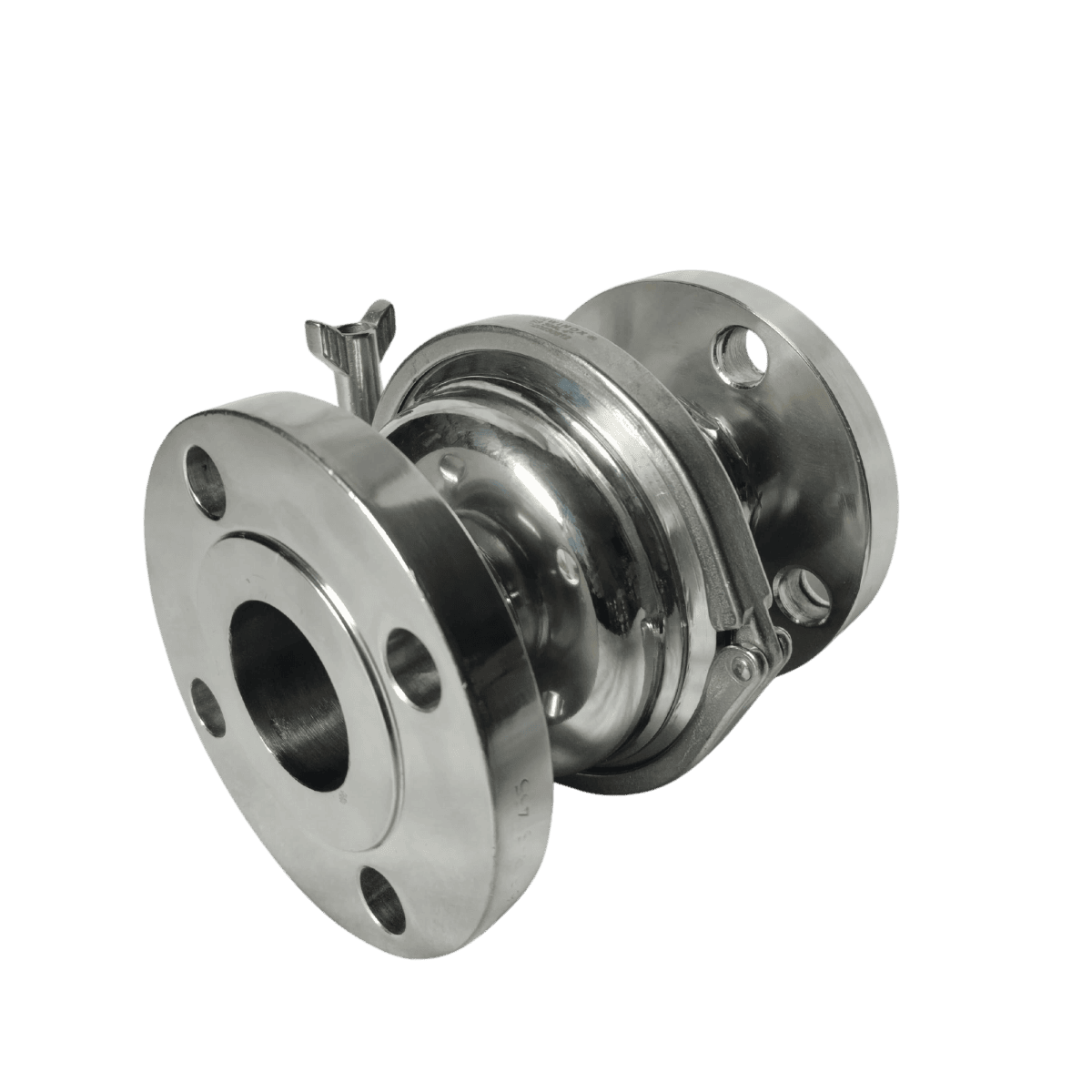

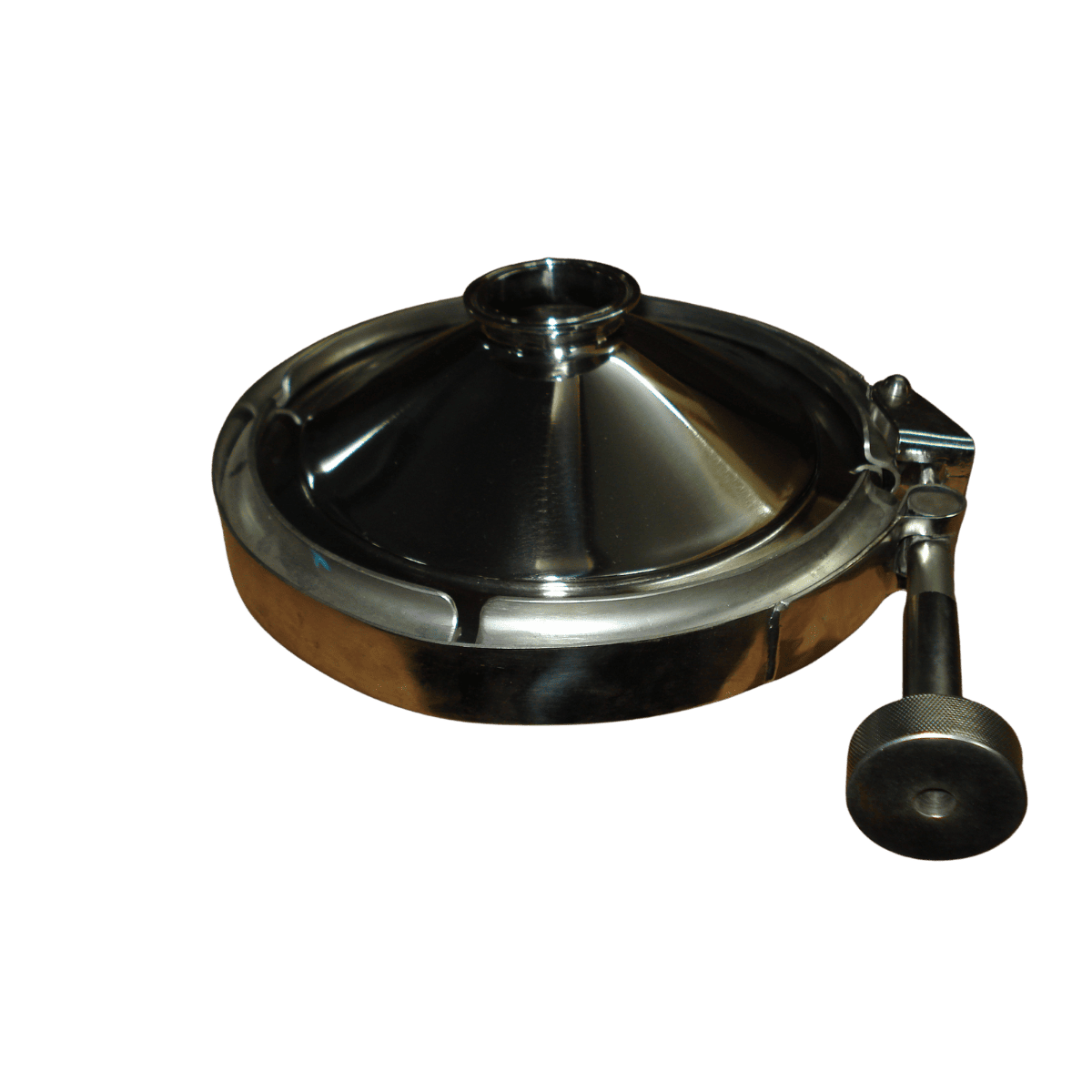

Conical Filter

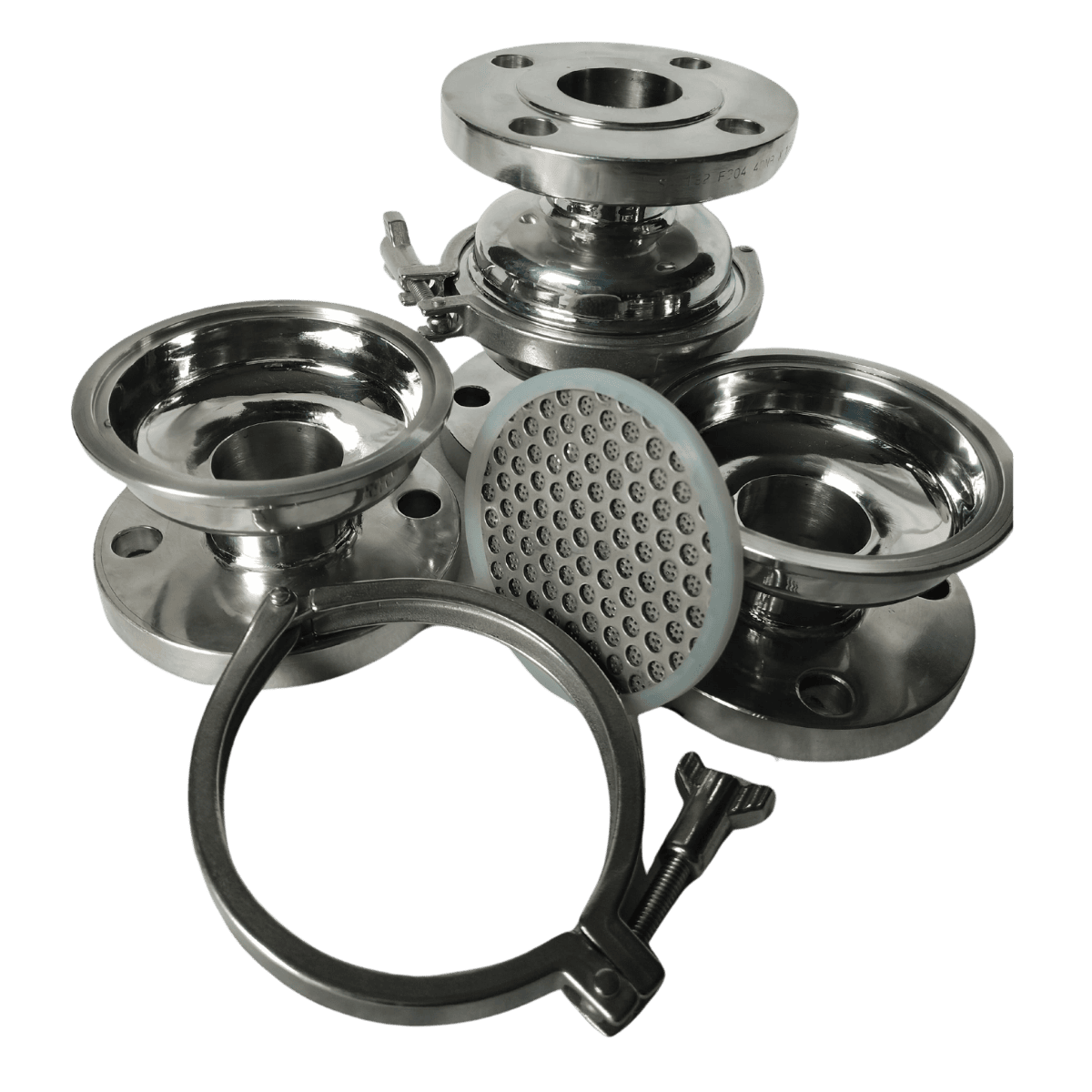

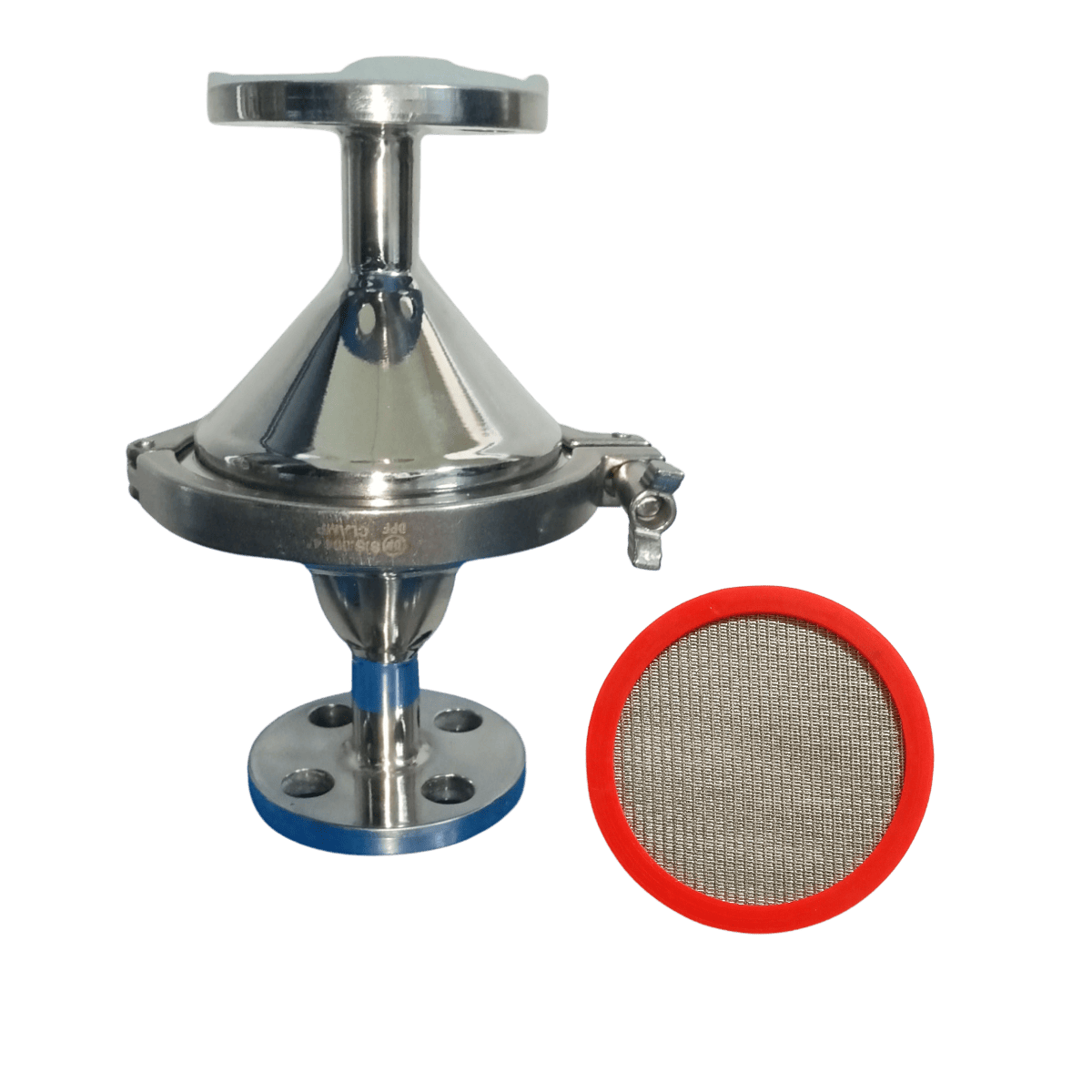

TFI® Conical Filters A conical filter device is used to filter steam, gases, or liquids passing through a pipeline from upstream to downstream. The filter includes a filter media, typically an SS mesh, enclosed in a conical housing. These filters are valued for their compact size, robust construction, and efficient filtration performance with low pressure drop.
Key Features:
- Compact size and robust design
- Low pressure drop
- Easy maintenance
Product Specifications:
- Micron Rating: 0.5, 5, 10 µ or as required
- MOC: SS316
- End Connections: Flange, Triclover
- Gasket Material: Silicon
- Max Operating Temperature: 250°C
Applications:
- Air, Liquid, Gas
.png)
.png)
.png)
.png)
.png)
